Normally, the pre-filter is installed in the inlet pipe after the water meter. It can remove sediments, microbial remains, rust and other large grained impurities. The Pre-filter can provide a positive protection for water purifiers, water heaters, washing machines, high-grade faucets, showers and other water appliances connected to the water pipe system.

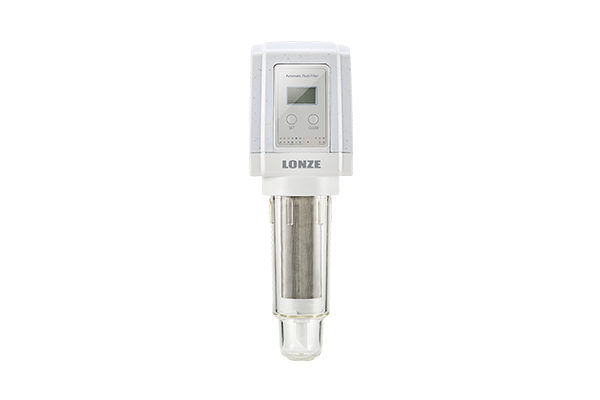

Automatic flushing
Filtering Method：S/S Mesh
Filter Fineness：70 Micron
Pre-filter

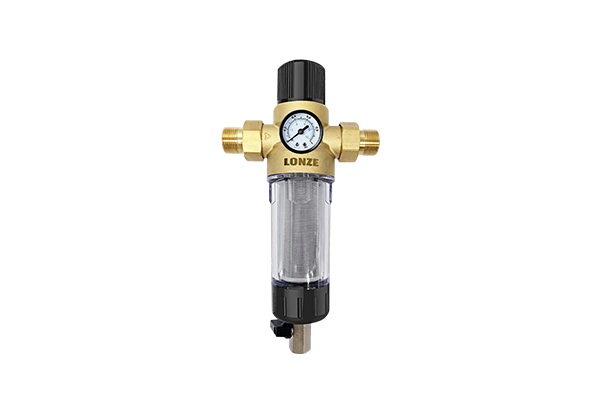

Product features:
• Large flow design, the flow rate is about 3000 L/H and it can fully meet the household daily needs.
• Copper parts don’t contain any lea, which has reached the FDA standard. It can be universally installed in different directions.
• Equipped with the function of depressurizing and stabilizing the water pressure, and it also can protect water appliances under high pressure.
• Unique safety protection function of double seals.
• The filter membrane uses the material of SUS316L, and it does not need to be replaced throughout its service life.
• The maximum burst pressure of PC body exceeds 55 kg. The water hammer test standard is higher than the requirements of NSF.
• It has cleaning month memorizing function.
Filtering Method：S/S Mesh
Filter Fineness：70~90 Micron
Designed Flow Rate：≤3T/H
Working Temp：4~40°C
Working Pressure：0.1~0.4MPa
Size：155* 140* 310mm
Pre-filter

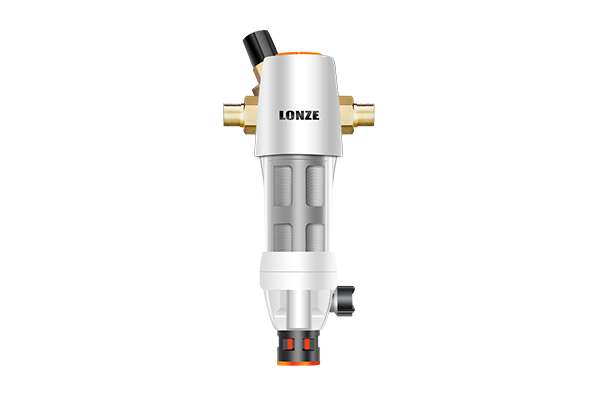

Product features:
• Large flow design, the flow rate is about 3000 L/H, and it can meet the household daily needs.
• Equipped with the function of depressurizing and stabilizing the water pressure, and it also can protect water appliances under high pressure.
• Unique safety protection function of double seals.
• The type of cleaning soft blades adopts wiper blade.
• The filter membrane uses the material of SUS316L, and it does not need to be replaced throughout its service life.
• The maximum burst pressure of PC body exceeds 55 kg. The water hammer test standard is higher than the requirements of NSF.
Filtering Method：S/S Mesh
Filter Fineness：70~90 Micron
Designed Flow Rate：≤3T/H
Working Temp：4~40°C
Working Pressure：0.1~0.4MPa
Size：150* 75* 280mm

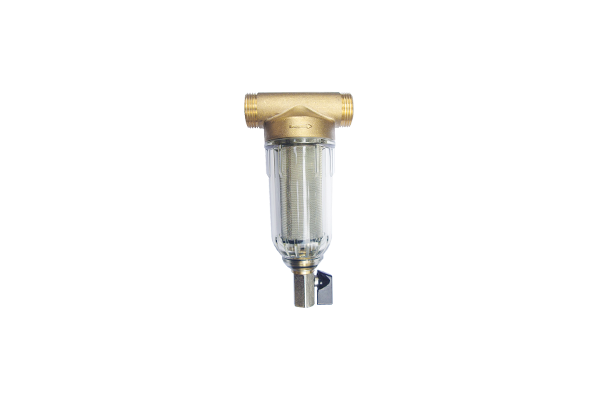

Made of refined copper H62, very reliable
Filtering Method：S/S Mesh
Filter Fineness：70~90Micron
Designed Flow Rate：≤3T/H
Pre-filter
Product features:

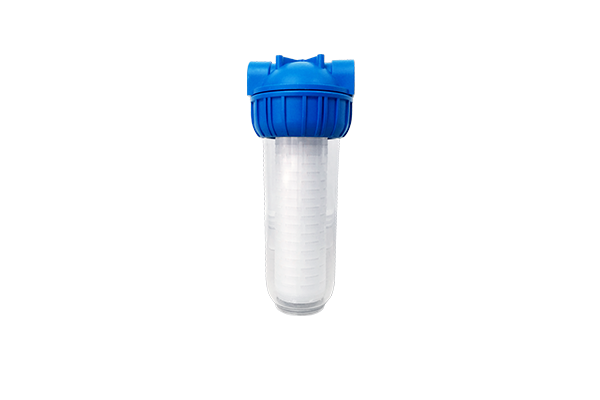

• Pure PC material;
• Maximum working pressure 150 psi;
• Designed flow rate: 2000L/H;
• Folded paper filter, filtration precision 20 micron;
• The replacement cycle is 3-12 months.
Filtering Method：Fold Filter
Filter Fineness：20Micron
Designed Flow Rate：≤2T/H
Working Temp：4~40°C
Working Pressure：0.1~0.4MPa
Size：128* 128* 315mm
